Example: Kubernetes

Learning objectives

You know some cloud computing providers that offer Kubernetes as a service.
You know the basics of creating a Kubernetes cluster on a cloud provider.

There exists a wide variety of cloud computing providers that offer Kubernetes as a service. These include Scaleway, AWS, Google Cloud, Azure, and Digital Ocean. Here, we'll briefly look into deploying a Kubernetes application on an online cloud provider.

In the example, we'll use Google Kubernetes Engine with autopilot.

Credit card required

If you want hands-on experience by following the example, you'll need a credit card. If you provide credit card details, make sure to dismantle all experiments once you've tried them out to avoid unnecessary billing.

To complete the course, deployment on a cloud provider is not required or expected.

Creating a project on Google Cloud

We start by logging into (and registering if needed) into Google Cloud and creating a new project. We'll call the project dab-kubernetes-autopilot-demo (you could name the project anything you want).

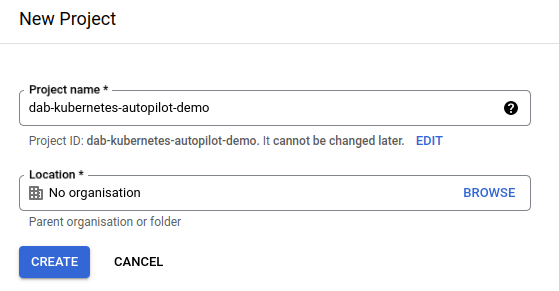

Fig. 1 - Creating a new project on Google Cloud.

Once the project has been created, select the project in the dashboard. Next, clicking on the link "APIs & Services", we choose "Enable APIs and Services". This opens up an API library that allows us to enable APIs for the project. For the present project, we enable the "Kubernetes Engine API" and the " Artifact Registry API".

Creating a cluster

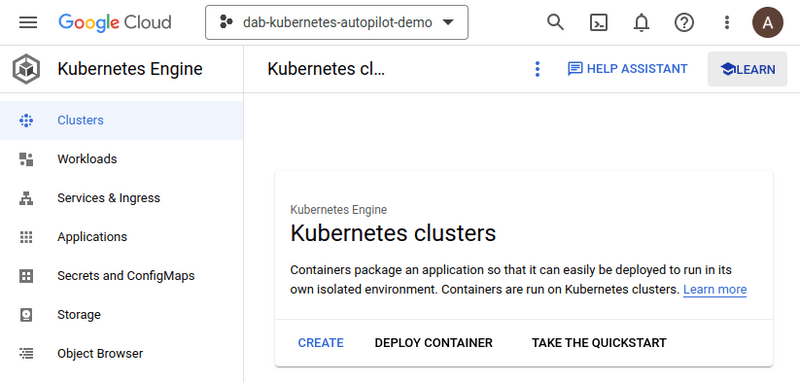

Next, with the Kubernetes Engine API and the Google Container Registry API enabled, we can create a cluster. The cluster is created in the Kubernetes Engine dashboard at https://console.cloud.google.com/kubernetes/, shown in Figure 2.

In the dashboard, we click the "Create" button and choose the "Autopilot" option, where the cluster is managed by Google. This opens up a wizard, that is used to create the cluster, and that guides through the steps of creating a cluster.

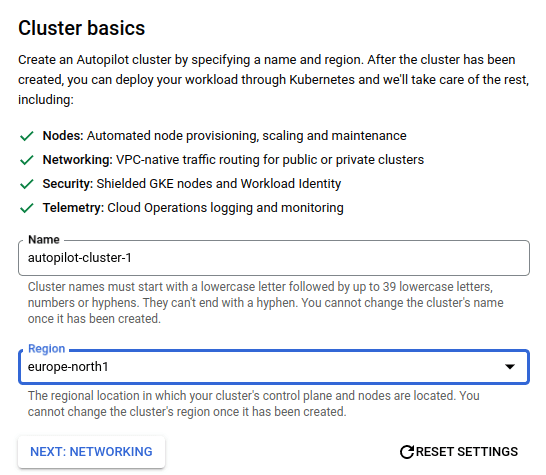

Fig. 3 - Cluster creation wizard, cluster basics.

When setting up the cluster, we use the default name from the wizard (here, autopilot-cluster-1) and select europe-north1 as the region for the cluster. These settings are shown in Figure 3 above. We use the default options for networking and advanced settings, and in the review and create -step, we click the "Create cluster" button to create the cluster. It takes a while for the cluster to be created.

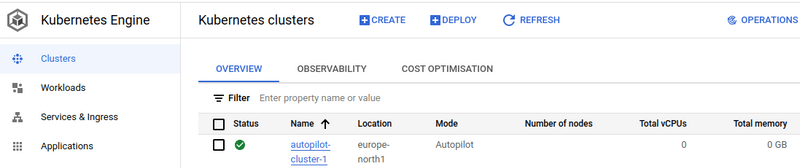

Once the cluster has been created, it is in the list of visible clusters. At the present stage, as shown in Figure 4, there are no nodes, no vCPUs, and the cluster does not use any memory.

Fig. 4 - Newly created cluster is available in the cluster list.

Creating a repository for Docker images

Next, we open up the artifact registry at https://console.cloud.google.com/artifacts and create a new repository for Docker images by clicking "Create repository". When creating the repository, we call the repository "docker-images", select "Docker" as format, choose "Standard" mode and "Region" as location type. As the region, we'll choose europe-north1. We use the default encryption (Google-managed encryption key). Once the options have been provided, we click "Create" to create the repository.

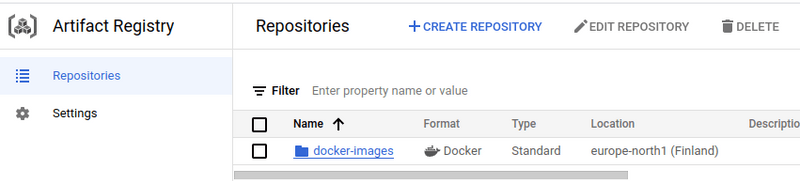

Once the repository has been created, it is in the list of visible repositories, shown in Figure 5.

Fig. 5 - Artifact registry contains the repository docker-images.

Creating an application

For the purposes of the example, we'll create a simple application that responds to requests with a joke. The application is written in vanilla Deno. The app.js for the application is as follows:

const jokes = [
  "What did baby corn say to mama corn? -- Where's pop corn?",
  "Why are eggs bad at handling stress? -- They crack under pressure.",
];

const server = `Server ${Math.floor(10000 * Math.random())}`;

const handleRequest = async (request) => {
  const joke = jokes[Math.floor(Math.random() * jokes.length)];

  return new Response(`${server}: ${joke}`);
};

Deno.serve({ hostname: "0.0.0.0", port: 7777 }, handleRequest);

And the Dockerfile is as follows.

FROM denoland/deno:alpine-1.42.2

EXPOSE 7777

WORKDIR /app

COPY . .

CMD [ "run", "--unstable", "--allow-net", "app.js" ]

Creating the image and pushing it to the repository

When in the folder that contains the above files, we run the command docker build -t jokes-app ., creating an image jokes-app of the application.

docker build -t jokes-app .
...
 => => naming to docker.io/library/jokes-app

Next, we need to install Google's Cloud CLI gcloud, which provides command-line functionality for maintaining projects on Google Cloud. With the gloud installed, we authenticate to the project by running the command gcloud auth login. This opens up a browser window, where we can log in to the Google account that is associated with the project. Once logged in, we can close the browser window.

Next, we authenticate to the specific artifact registry by running the command gcloud auth configure-docker europe-north1-docker.pkg.dev, where europe-north1-docker.pkg.dev is refers to the location of the artifact registry (selected when creating the repository). Running the command updates our Docker configuration to utilize the gloud command when pushing images.

gcloud auth configure-docker europe-north1-docker.pkg.dev
Adding credentials for: europe-north1-docker.pkg.dev
After update, the following will be written to your Docker config file located at [/home/username/.docker/config.json]:
 {
  "credHelpers": {
    "europe-north1-docker.pkg.dev": "gcloud"
  }
}

Do you want to continue (Y/n)?

Docker configuration file updated.

Next, we tag the image by running the command docker tag jokes-app europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app:latest. The tag is in the format europe-north1-docker.pkg.dev/<project-id>/<repository-name>/<image-name>:<tag>.

docker tag jokes-app europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app:latest

And finally, we push the image to the registry using the command docker push europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app:latest.

docker push europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app:latest
The push refers to repository [europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app]
...
latest: ...

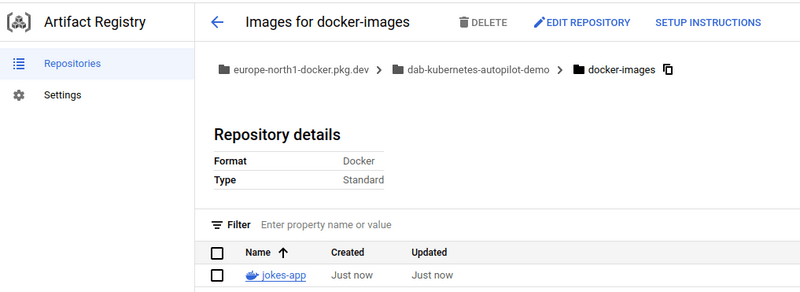

Now, when we visit the artifact registry and open up the docker-images repository, we see the image jokes-app in the list of images, as shown in Figure 6.

Fig. 6 - Jokes app image present in artifact registry.

Deploying an image

Next, it's time to deploy the image. Let's create a deployment configuration file jokes-app-deployment.yaml with the following content.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: jokes-app-deployment
  labels:
    app: jokes-app
spec:
  selector:
    matchLabels:
      app: jokes-app
  template:
    metadata:
      labels:
        app: jokes-app
    spec:
      containers:
        - name: jokes-app
          image: europe-north1-docker.pkg.dev/dab-kubernetes-autopilot-demo/docker-images/jokes-app:latest
          ports:
            - containerPort: 7777
          resources:
            requests:
              cpu: "250m"
              memory: "500Mi"
            limits:
              cpu: "250m"
              memory: "500Mi"

The key difference to our earlier deployment configurations is that we now use the image from the artifact registry and that the requested resources differ to some extent from our prior efforts. The above limits are related to the autopilot resource requests.

Next, we need to adjust kubectl to deploy to our Google Cloud project. To do this, we provide cluster access for kubectl by running the command gcloud components install kubectl. This installs the kubectl command-line tool. Next, we run the command cloud container clusters get-credentials autopilot-cluster-1 --zone europe-north1 --project dab-kubernetes-autopilot-demo. This updates the kubectl configuration to point to the cluster in our project.

cloud container clusters get-credentials autopilot-cluster-1 --zone europe-north1 --project dab-kubernetes-autopilot-demo
Fetching cluster endpoint and auth data.
kubeconfig entry generated for autopilot-cluster-1.

Finally, we can apply our configuration to deploy the image to the cluster. This is done by running the command kubectl apply -f jokes-app-deployment.yaml in the folder where the configuration file is located.

kubectl apply -f jokes-app-deployment.yaml
deployment.apps/jokes-app-deployment configured

Now, when we check out the pods, we see that a pod is running.

kubectl get pods
NAME                                    READY   STATUS    RESTARTS   AGE
jokes-app-deployment-7cb766f44f-vwgk2   1/1     Running   0          4m21s

Exposing a service

The next step is to expose the deployment. Let's create a service configuration file jokes-app-service.yaml with the following content.

apiVersion: v1
kind: Service
metadata:
  name: jokes-app-service
spec:
  type: LoadBalancer
  ports:
    - port: 7777
      targetPort: 7777
      protocol: TCP
  selector:
    app: jokes-app

And apply the configuration.

kubectl apply -f jokes-app-service.yaml
service/jokes-app-service created

Now, when we list services running the command kubectl get services, we see that the service is running.

kubectl get services
NAME                TYPE           CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE
jokes-app-service   LoadBalancer   10.42.0.3    34.88.159.3   7777:30574/TCP   2m53s
..

The external IP address is the IP address of the load balancer. We can use this IP address to access the service. Let's try it out by running the command curl 34.88.159.3:7777 in the terminal.

curl 34.88.159.3:7777
Server 6252: What did baby corn say to mama corn? -- Where's pop corn?
curl 34.88.159.3:7777
Server 6252: What did baby corn say to mama corn? -- Where's pop corn?
curl 34.88.159.3:7777
Server 6252: Why are eggs bad at handling stress? -- They crack under pressure.

Fig. 7 - The application is accessible also using a browser.

Continuation steps

The next steps would be to create a domain for the application, to configure the domain to point to the load balancer, to set up certificates to allow using HTTPS, and to set up a GitOps-flow to enable continuous deployment for the application (e.g. from GitHub). The Google Cloud documentation at https://cloud.google.com/docs/get-started offers plenty of resources for this.

Cleaning up

If you followed the above steps and created your own Kubernetes deployment, it is meaningful to also dismantle it to avoid any unnecessary costs (note the free tier though). We can delete the cluster by running the command gcloud container clusters delete autopilot-cluster-1 --zone europe-north1 --project dab-kubernetes-autopilot-demo, which deletes the cluster (and the deployments and services in it).

gcloud container clusters delete autopilot-cluster-1 --zone europe-north1 --project dab-kubernetes-autopilot-demo
The following clusters will be deleted.
 - [autopilot-cluster-1] in [europe-north1]

Do you want to continue (Y/n)?  Y

Deleting cluster autopilot-cluster-1...done.
Deleted [https://container.googleapis.com/v1/projects/dab-kubernetes-autopilot-demo/zones/europe-north1/clusters/autopilot-cluster-1].

Next, we also clean up the artifact repository, which is done by the command gcloud artifacts repositories delete docker-images --location europe-north1.

gcloud artifacts repositories delete docker-images --location europe-north1
You are about to delete repository [docker-images]

Do you want to continue (Y/n)?  Y

Delete request issued for: [docker-images]
Waiting for operation [projects/dab-kubernetes-autopilot-demo/locations/europe-north1/operations/...] to complete...done.
Deleted repository [docker-images].

Other providers

Although we used Google Cloud above, the underlying principles are the same across cloud providers. We create a cluster, add an image to a registry, create a deployment with the image, and expose the deployment with a service. Subsequent steps such as adding a domain, creating an ingress with HTTPS support, and so on, also function similarly across the cloud providers.
