Tracing a Request

We have seen the saved todo in the database, the API response, and the browser. Now let’s follow the code that connects those observations. We will then trace a practice value of your own and try one temporary mistake to see how it appears in the browser.

You do not need to know Hono or Svelte in detail yet. Follow one step at a time, keeping the running application beside the source files so you can compare the code with what happens.

First inspect the browser request

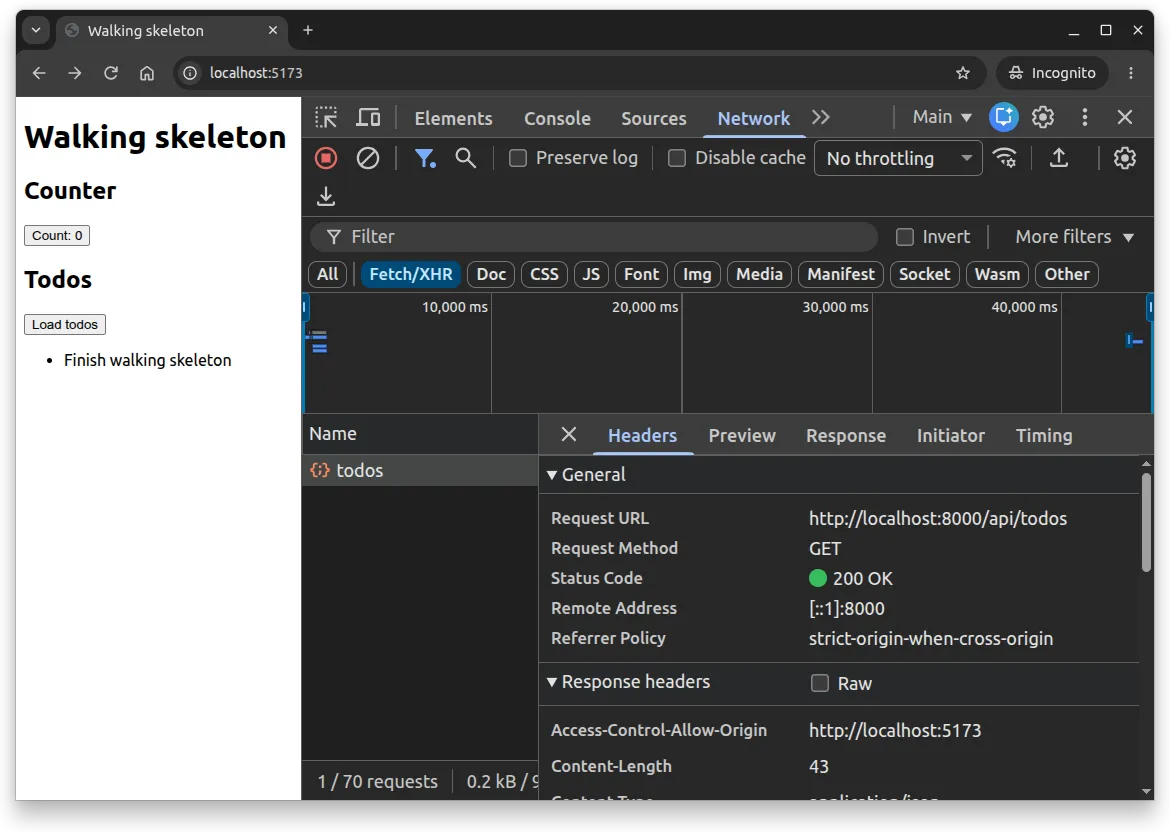

Start in the browser’s Network panel, then click Load todos. Select the /api/todos request and find its method, URL, response status, and JSON body. Figure 1 shows where to inspect the request headers. The screenshot filters the list to api/todos; clear that filter to see the document and source-file requests too. Your browser’s panel may arrange these details differently.

The page was already visible before you clicked the button. The client development server first supplied the browser application; clicking Load todos then sent a separate request directly to Hono. This is why the page can load even if a later request fails.

Open http://localhost:8000/health separately. Its { "status": "ok" } response tells us the health route answered. That route makes no SQL query, whereas the todo route needs to read the migrated database before returning its rows.

GET http://localhost:5173/                                  document  200
GET http://localhost:5173/_app/immutable/entry/start.js     script    200
GET http://localhost:8100/branch-hours                      fetch     200
GET http://localhost:8100/study-rooms                       fetch     200

Follow the route to its repository

In api/src/app.ts, find the existing route:

app.get("/api/todos", async (c) => {
  const todos = await findAll();
  return c.json(todos);
});

Follow its findAll import into api/src/todoRepository.ts:

import { sql } from "./database.ts";

export type Todo = {
  id: number;
  name: string;
};

export const findAll = () =>
  sql<Todo[]>`SELECT id, name FROM todos ORDER BY id`;

Reading the two files together, we can see how they divide the work: the handler asks findAll for the todos and forms the HTTP response, while the repository sends the SQL query. PostgreSQL stores the rows and returns the selected columns. The migration creates an INTEGER identity, so these IDs fit the number representation used in this example without an additional cast.

sql comes from database.ts, which reads the configured DATABASE_URL and creates the shared Postgres.js client. Connections open when a query needs them. The request reuses that client; it does not call sql.end(). The listening entry point closes it during application shutdown. In tests, the test group owns cleanup instead. The Postgres.js documentation explains its connection lifecycle.

For our small starting dataset, returning every todo in ID order lets us inspect the rows together. The query has no pagination or limit on response size. Later, when working with larger collections, we will need to limit how much each request reads.

Follow the response into browser state

Open client/src/lib/TodoList.svelte. The Load todos button calls loadTodos. Read its request together with the state declarations and the conditional markup:

Notice the difference between the initial null and a successful []: in the first case we have not loaded anything yet; in the second, we asked for the rows and received none. A failed request has its own message. These distinctions help us show the user what happened. Part 2 returns to designing such state models.

The component’s keyed list connects each returned record to its visible text:

<ul>
  {#each todos as todo (todo.id)}
    <li>{todo.name}</li>
  {/each}
</ul>

Find this excerpt inside the supplied component’s successful, nonempty branch, where todos is an array. The list is already connected to the page: +page.svelte places TodoList in the Todos section, so we can inspect it without adding another copy.

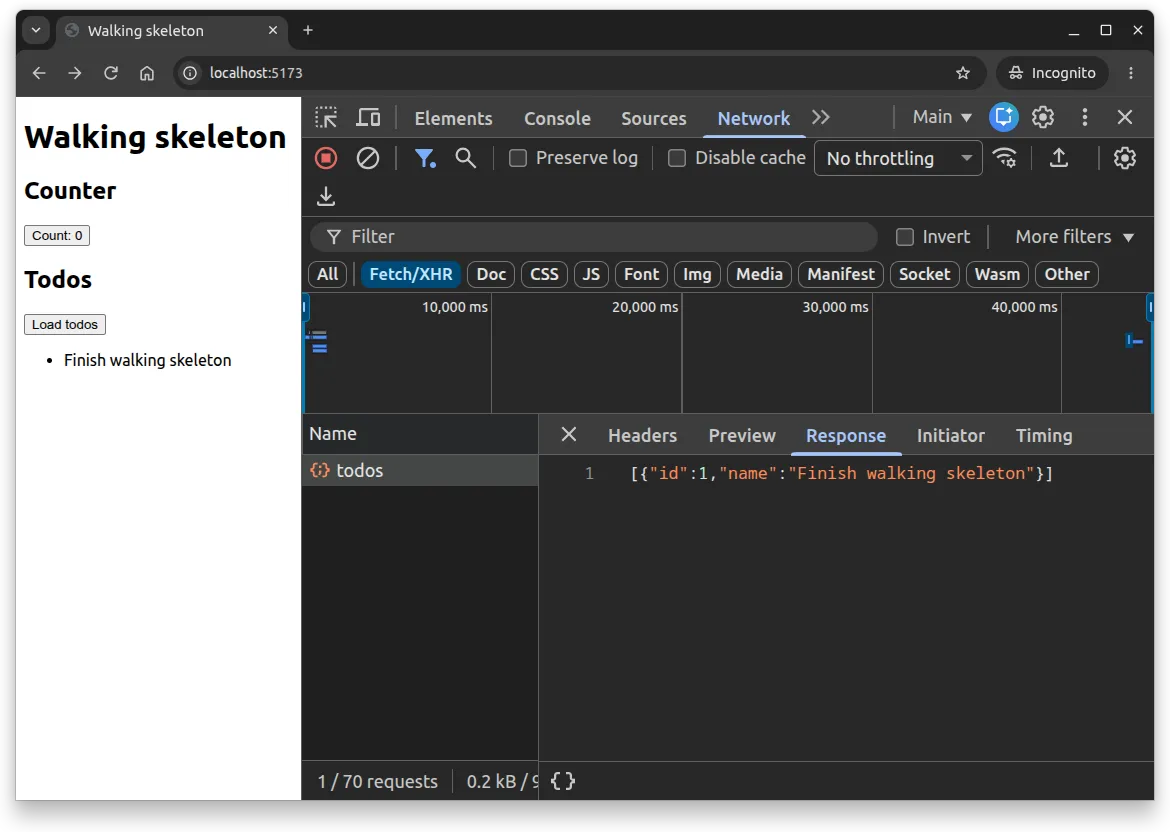

The Todo type helps our tools describe the expected data. The call to response.json() decodes JSON but does not check that the decoded values match that type. Here we are reading our own endpoint; later parts add checks for incoming data. Figure 2 places the returned name beside its rendered text.

Observe a request while it is pending

A local response can arrive too quickly to notice the loading state. In the browser’s Network panel, select a slow network-throttling preset. Before clicking Load todos, predict what will happen to that button and whether the counter will still respond.

Click Load todos. While the request is pending, look for Loading todos…, try the disabled load button, and click the counter. If the counter changes while the todos are loading, you have seen the browser handle another interaction while the component waits for data. Once the response arrives, compare its JSON with the list. Restore No throttling afterward so later observations use the normal connection.

Trace one actual value

Use the database shell command from Chapter 1.6:

SELECT id, name FROM todos ORDER BY id;

Compare the stored name with the API response and the page. Figure 3 follows the request and the return journey for that row.

For the seeded row, the name should be Finish walking skeleton in the database, JSON, and page.

We can now describe the name’s journey: PostgreSQL stores it, the repository reads it, Hono returns JSON, the browser decodes the response, and Svelte renders the text. The API handles the database query; the browser sends its request to Hono, not to PostgreSQL or through the SvelteKit development server.

The initial HTML document, CSS, JavaScript modules, and API response are different resources. Part 2’s Internet and HTTP chapter studies those distinctions systematically.

// Repository query
const findReadings = async () => await sql`
  SELECT location, temperature_c AS "temperatureC"
  FROM air_readings
`;

// API route
app.get("/air-readings", async (c) => c.json(await findReadings()));

// Browser event handler
const loadReadings = async () => {
  const response = await fetch(apiBase + "/air-readings");
  readings = await response.json();
};

Follow a value you introduce

Let’s trace a value that you can recognize as your own. Use the practice application from Chapter 1.3, with its services running. We will temporarily add a row to that practice database, leaving 001_create_todos.sql and its demonstration row unchanged.

First click Load todos and increment the counter. Open the database shell using Chapter 1.6’s command. Choose a recognizable practice name of your own in place of the example below, then enter:

INSERT INTO todos (name)
VALUES ('My first traced todo')
RETURNING id AS practice_id
\gset

SELECT id, name FROM todos WHERE id = :practice_id;

Here \gset runs the preceding statement and saves its returned ID in a psql variable called practice_id; it replaces the usual final semicolon. Keep this database-shell session open so the variable remains available for cleanup. Record the returned ID and name from the SELECT result.

Predict each result before trying it:

Finish in the same database-shell session:

DELETE FROM todos WHERE id = :practice_id RETURNING id, name;

Confirm that the deleted ID is the one you recorded. Make another direct API request and click Load todos again: the practice row should be absent, while Finish walking skeleton remains. If you closed the shell, look up your recorded row and ID before deleting it; do not delete all todos to clean up one investigation.

Keep a short trace using your own row’s name and ID: stored row → repository result → JSON → visible list item. Explain why a database change became visible only after a new request. This connects a value you inserted to the JSON and list item it produced. The manual row stays part of this investigation, not a reproducible project seed. In Chapter 1.8, we will see an integration test automate insertion, observation, and cleanup with its own fixture rows.

A small debugging map

If something goes wrong, you can follow the request in stages rather than reread every file at once. The table suggests where to look next. A displayed error tells us the component reported a failure; checking the response and logs helps us find where that failure began.

Inspect a direct API request in the browser, or use curl when available:

curl -i http://localhost:8000/api/todos
docker compose logs --tail=30 api

A direct request removes the page’s rendering code from that particular check. API source edits normally restart the development process through Deno’s watcher; inspect its logs if the observed route does not match the file.

Predict and observe a failure

Temporarily change the request in TodoList.svelte from /api/todos to /api/missing-todos. Before clicking, predict whether a request will appear, which response status is likely, and whether the counter should still work.

Observe the outcome, then restore /api/todos and click again. Here the intended repair is to correct the request path, leaving the API routes unchanged. Record one sentence explaining the initiating change and one explaining the visible consequence. Comparing the failed request with the restored one gives you a recognizable example to use when debugging later.

initial document                              200
GET http://localhost:8100/air-readings        200
response JSON                                 [{"location":"North atrium","temperatureC":19.4}]
visible page                                  Readings: loading
browser console                               TypeError in loadReadings while assigning response data

Check the handoff to testing

Undo the deliberate failure and verify:

• GET http://localhost:8000/api/todos returns status 200 and an array containing Finish walking skeleton.
• Clicking Load todos sends that request and renders the row under Todos.
• The original heading, counter, and direct /health response still work.

If a check fails, use the map above to find the first step that differs from what you expect. Once these checks pass, you have followed a stored value all the way to the page and restored the application after a deliberate mistake. Next, we will read tests that repeat checks on this behavior for us.

Check Your Understanding

1. How does loading the application page differ from clicking Load todos?
2. Which steps carry a todo’s name from PostgreSQL to the visible list?
3. Why does inserting a row in the database not immediately update an already-loaded list?
4. What happens to the counter, the loaded list, and the stored rows when you reload the page?
5. If the API response is correct but the visible text is wrong, where would you investigate next?
6. Why should an investigation remove only the practice row it created?
